Cruise MEDOC2010 shots: data received by INGV's stations

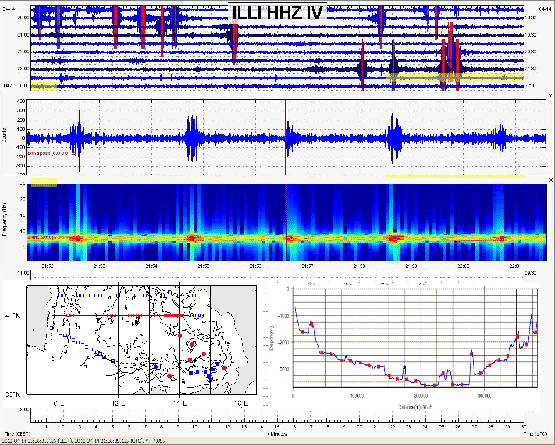

**Figure A5:** Lipari Station data, 2010-04-14 21:52, INGV National Seismological Network. Shots from R/V Sarmiento de Gamboa, cruise MEDOC10. Bottom Panel shows the R/V Sarmiento de Gamboa navigation (left, thick red line represents the shots from 2010-04-14 19:50 to 23:50) and (right) the OBS deployed along the line by R/V Urania
$\includegraphics[width=\textwidth]{IMG/ILLI_time_spectrum_21_52_nav.eps}$

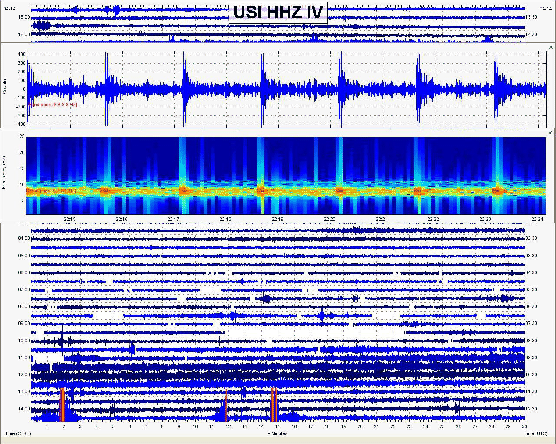

**Figure A6:** Ustica Station data, 2010-04-14 22:15,INGV National Seismological Network. Shots from R/V Sarmiento de Gamboa, cruise MEDOC10.
$\includegraphics[width=\textwidth]{IMG/USI_time_spectrum_22_15_14_04.eps}$

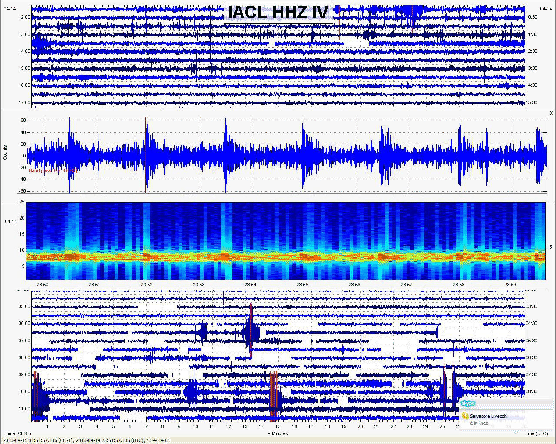

**Figure A7:** Alicudi Station data 2010-04-14 23:50, INGV National Seismological Network. Shots from R/V Sarmiento de Gamboa, cruise MEDOC10.
$\includegraphics[width=\textwidth]{IMG/IACL_time_spectrum_23_50.eps}$
